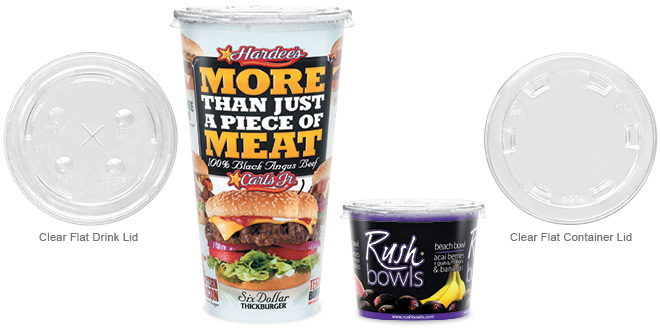

These thermo-formed lids are designed to complement the cup without clashing with the print. Sold in full cases of 1,000. Other lid types are available for large quantity orders.
| Lid | Height | OD | ID | Spec Sheet | Art Template |
|---|---|---|---|---|---|
| Clear Flat 9 oz | .379 | 3.322 | 3.120 | — | |
| Clear Flat 12 oz | .339 | 3.484 | 3.120 | — | |
| Clear Flat 17 oz | .339 | 3.840 | 3.664 | — | |
| Clear Flat 32 oz | .339 | 4.300 | 4.093 | — | |
| Clear Flat 44 oz | .330 | 4.700 | 4.515 | — |
| CUP LIDS | 9 oz | 12 oz | 12 oz | 16 oz | 17 oz | 21 oz | 22 oz | 32 oz | 44 oz |
|---|---|---|---|---|---|---|---|---|---|
| Size Code | 09 | T2 | 13 | 16 | 17 | 21 | 22 | 32 | 44 |
| Min Order No Slot | -- | 1,000 | 1,000 | 1,000 | -- | 1,000 | 1,000 | -- | 2,000 |
| Min Order Straw Slot | 112,000 | 1,000 | 1,000 | 1,000 | 2,000 | 1,000 | 1,000 | 2,000 | 2,000 |
| Qty/Case | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| lbs/Case | 6 | 8 | 8 | 8 | 7 | 8 | 8 | 9 | 12 |
CONTAINER LIDS | 3 oz | 5 oz | 8 oz | 8 oz | 12 oz | 8 oz | Mid 12 oz | 12 oz | 14 oz | 14 oz | Short 16 oz | Pint 16 oz | 17oz/500ml | Short 20 oz | Short 32 oz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size Code | T3 | T5 | R8 | T8 | R2 | U8 | U2 | T2 | R4 | T4 | T6 | R6 | R7 | 2Q | 3Q |
| Min Order No Slot | 90,000 | 1,000 | 1,000 | 2,000 | 1,000 | -- | -- | 1,000 | 1,000 | 108,000 | 108,000 | 1,000 | 1,000 | 2,000 | -- |
| Min Order Straw Slot | -- | 1,000 | 1,000 | -- | 1,000 | -- | -- | 1,000 | 1,000 | -- | -- | 1,000 | 1,000 | 2,000 | -- |
| Qty/Case | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | -- | -- | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | -- |
| lbs/Case | 5 | 6 | 8 | 6 | 8 | -- | -- | 8 | 8 | 12 | 12 | 8 | 8 | 12 | -- |
| DRINK CUPS | Box Dimensions | Per Box | Per Pallet | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | L" | W" | H" | CF | Sleeves | Pieces | lbs | Dimensions | Weight | Boxes | Pieces |
| 9 oz (09) | 17.19 | 7.13 | 22.88 | 1.62 | 10@100 | 1,000 | 6 | 40"x48"x98" | 336 | 56 | 56,000 |
| 12 oz (T2) | 18.95 | 7.65 | 16.48 | 1.38 | 10@100 | 1,000 | 8 | 40"x48"x95" | 512 | 64 | 64,000 |
| 12 oz (13) | 18.95 | 7.65 | 16.48 | 1.38 | 10@100 | 1,000 | 8 | 40"x48"x95" | 512 | 64 | 64,000 |
| 16 oz (16) | 18.95 | 7.65 | 16.48 | 1.38 | 10@100 | 1,000 | 8 | 40"x48"x95" | 512 | 64 | 64,000 |
| 17 oz (17) | 20.38 | 8.50 | 16.48 | 1.65 | 10@100 | 1,000 | 7 | 41"x48"x96" | 378 | 54 | 54,000 |
| 21 oz (21) | 18.95 | 7.65 | 16.48 | 1.38 | 10@100 | 1,000 | 8 | 40"x48"x95" | 512 | 64 | 64,000 |
| 22 oz (22) | 20.45 | 15.94 | 16.38 | 3.09 | BULK | 500 | 12 | 48"x48"x87" | 360 | 30 | 15,000 |
| 32 oz (32) | 21.75 | 9.00 | 16.48 | 1.87 | 10@100 | 1,000 | 9 | 40"x48"x96" | 396 | 44 | 44,000 |
| 44 oz (44) | 24.25 | 9.75 | 16.48 | 2.25 | 10@100 | 1,000 | 12 | 40"x49"x97" | 528 | 44 | 44,000 |
CONTAINER LIDS | Box Dimensions | Per Box | Per Pallet | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | L" | W" | H" | CF | Sleeves | Pieces | lbs | Dimensions | Weight | Boxes | Pieces |
| 3 oz (T3) | 15.88 | 6.63 | 16.48 | 1.00 | 10@100 | 1,000 | 5 | 40"x48"x87" | 450 | 90 | 90,000 |
| 5 oz (T5) | 17.45 | 14.00 | 14.23 | 2.01 | BULK | 500 | 10 | 40"x48"x90" | 360 | 36 | 18,000 |
| 8 oz (R8) | 20.45 | 15.94 | 16.38 | 3.09 | BULK | 500 | 12 | 48"x48"x87" | 360 | 30 | 15,000 |
| 8 oz (T8) | 18.00 | 7.75 | 17.48 | 1.41 | 10@100 | 1,000 | 6 | 40"x48"x92" | 360 | 60 | 60,000 |
| 12 oz (R2) | 20.45 | 15.94 | 16.38 | 3.09 | BULK | 500 | 12 | 48"x48"x87" | 360 | 30 | 15,000 |
| 12 oz (T2) | 18.95 | 7.65 | 16.48 | 1.38 | 10@100 | 1,000 | 8 | 40"x48"x95" | 512 | 64 | 64,000 |
| 14 oz (R4) | 20.45 | 15.94 | 16.38 | 3.09 | BULK | 500 | 12 | 48"x48"x87" | 360 | 30 | 15,000 |
| 14 oz (T4) | 21.00 | 8.75 | 16.48 | 1.75 | 10@100 | 1,000 | 12 | 40"x48"x96" | 648 | 54 | 54,000 |
| Short 16 oz (T6) | 21.00 | 8.75 | 16.48 | 1.75 | 10@100 | 1,000 | 12 | 40"x48"x96" | 648 | 54 | 54,000 |
| Pint 16 oz (R6) | 20.45 | 15.94 | 16.38 | 3.09 | BULK | 500 | 12 | 48"x48"x87" | 360 | 30 | 15,000 |
| 17oz/500ml (R7) | 20.45 | 15.94 | 16.38 | 3.09 | BULK | 500 | 12 | 48"x48"x87" | 360 | 30 | 15,000 |
| Short 20 oz (2Q) | 24.25 | 9.75 | 16.48 | 2.25 | 10@100 | 1,000 | 12 | 40"x49"x97" | 528 | 44 | 44,000 |
Lids made with recycled PET (RPET)
Certified Manufacturing Plant
